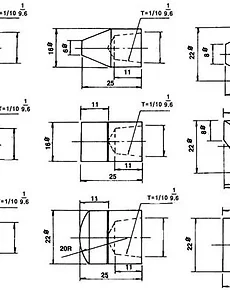

▣ CAP TIP
형식 |
형태 |
규격 |
형상 |
P형 |
MKC-011 |
돌출형 |
|
R형 |
MKC-021 |
구면형 |
|
C형 |
MKC-031 |
원주형 |
|
E형 |
MKC-041 |
편심형 |
|
F형 |
MKC-051 |
평면형 |
|
D형 |
MKC-061 |
동형 |
▣ Shank
형식 |
형태 |
규격 |
형상 |
S형 |
MKS-071 |
직선형 |
|
B형 |
MKS-081 |
휨 형 |
▣ CAP TIPS
▣ 직선형 샹크(STRAIGHT SHANK)
MODEL |
L |
B |
C |
|
MKS-12-01 |
42 |
17 |
40 |
1 |
MKS-12-02 |
52 |
27 |
50 |
1 |
MKS-12-03 |
62 |
37 |
60 |
5 |
MKS-12-04 |
82 |
57 |
80 |
5 |
MKS-12-05 |
102 |
77 |
100 |
5 |
재질 / MYBC,MCC,MCCZ
MODEL |
L |
B |
C |
|
MKS-16-01 |
45 |
15 |
40 |
1 |
MKS-16-02 |
22 |
25 |
50 |
1 |
MKS-16-03 |
65 |
35 |
60 |
5 |
MKS-16-04 |
85 |
55 |
80 |
5 |
MKS-16-05 |
105 |
75 |
100 |
5 |
재질 / MYBC,MCC,MCCZ
MODEL |
L |
B |
C |
|
MKS-19-01 |
60 |
22 |
50 |
1 |
MKS-19-02 |
70 |
32 |
60 |
1 |
MKS-19-03 |
90 |
52 |
80 |
5 |
MKS-19-04 |
110 |
72 |
100 |
5 |
재질 / MYBC,MCC,MCCZ
▣ OFF SET CAP ADAPTER
MODEL |
F |
A |
B |
MK-54 |
5 |
50 |
45 |
MK-56 |
65 |
60 |
|
MK-57 |
75 |
70 |
|
MK-104 |
10 |
50 |
45 |
MK-106 |
60 |
60 |
|
MK-107 |
75 |
70 |
|
MK-154 |
15 |
50 |
45 |
MK-156 |
60 |
60 |
|
MK-157 |
75 |
70 |
▣ CAP ADAPTER
MODEL |
A |
B |
MK-01 |
45 |
40 |
MK-02 |
55 |
50 |
MK-03 |
65 |
60 |
MK-04 |
85 |
80 |
▣ CAP TIP / Al2O3
FORGING CAP TIP |
||||
A |
B |
C |
D |
E |
Ø13 |
10 |
20 |
10 |
10 |
Ø16 |
12.7 |
23 |
11 |
11 |
Ø19 |
14 |
25 |
11 |
11 |
▣ ELECTRODE
C |
A |
B |
D |
TYPE |
Ø22 |
24-30 |
0°10°15° |
107-115 |
shank |
Ø25 |
24-70 |
0°10°15° |
130-150 |
shank holder |
Ø30 |
25-80 |
0°10°15° |
140-190 |
shank holder |
Ø40 |
40 |
0° |
150 |
shank holder |
